Exposure Control Module 2111390-H
| 2111390-H | |
| Used | |
| X-Ray | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | Exchange - Return Defective |
|
Core Exchange | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Electrogalvanized and Phosphatized Steel Housing
- With AEC (Automatic Exposure Control) Circuitry
- Prep and Expose switch Management
- Five Minutes Flouro Elapsed Timer
Product Overview

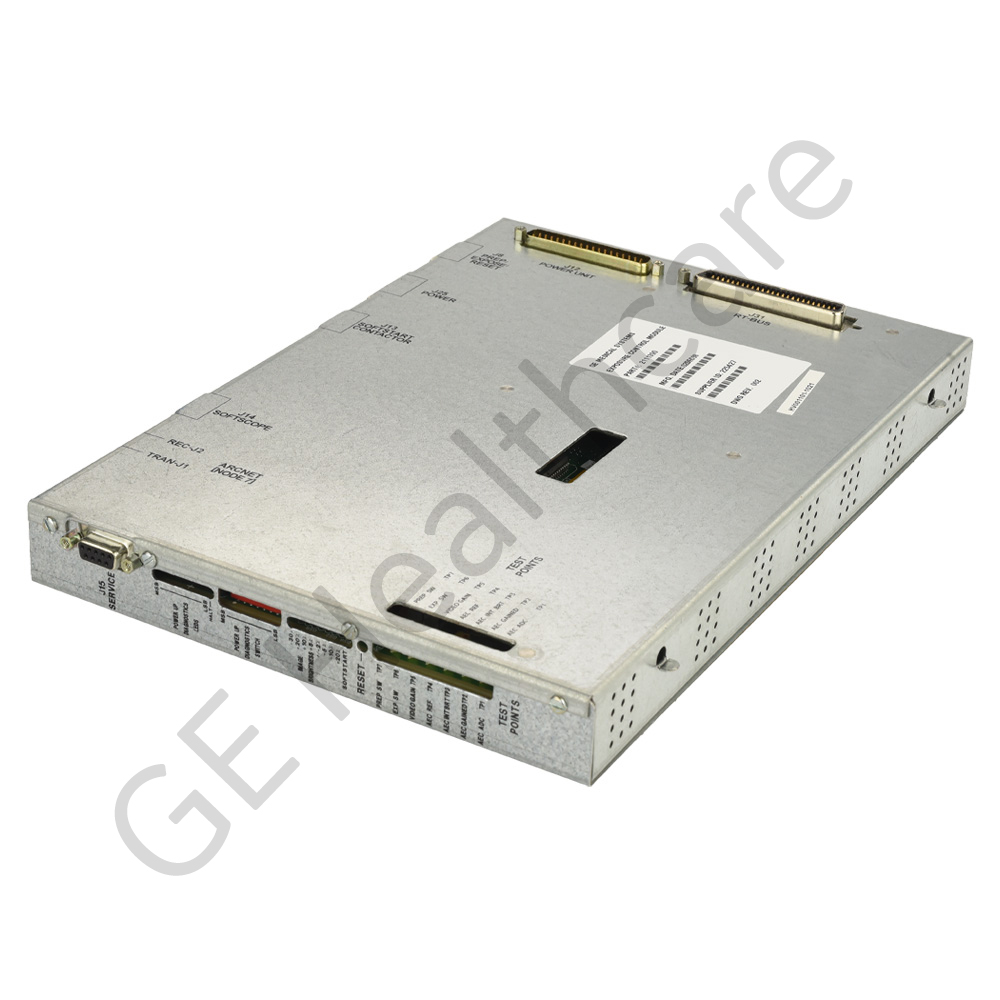

The Exposure Control Module (ECM) consists of a PWB (Printed Wiring Board) which is enclosed in a mechanical housing. The Exposure Control Module controls the power unit which in turn controls KV and mA at the X-Ray tube. The ECM PWB has five interfaces Arcnet, global realtime bus, a interface to the power unit, RS232 and I2C. The board is powered with 80C186XL 12 MHz microprocessor with a 80C287 coprocessor. The circuit board is 6 layer board made up of FR-4 Glass fiber, which is a composite material that consists of glass fabric, electrical grade epoxy resin. The material is strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. The electrogalvanized and phosphatized material housing comes with pre-blanked ports and has the provision for mounting it on the system cabinets. All external electrical connections, teminals, and controls are marked on the housing cover to indicate the function. The module is labeled with identification labels. The ECM is listed to UL1950, and certified to CSA 1402C and EN6950 by TUV.
2111390-H
Return And Exchange
GE HealthCare will accept, for return from customer, items that are in new condition, unworn, unaltered and free of damage. Items cannot be returned or exchanged beyond 30 days from customer’s receipt of the original order and all returned items will be subject to a 15% restocking fee. To obtain a full refund or exchange of the item within the 30 day return period (subject to the 15% restocking fee) customer must request a return materials authorization (RMA) from GE HealthCare and return the item to GE HealthCare utilizing this RMA number. Items must be returned in the original packaging, unused and free of damage.
Please note, cuffs, BP items, sterile and hazmat items cannot be returned. If a replacement order is requested, the restocking fee may be waived at GE HealthCare’s sole discretion.
