DAS Buffer PCI Board Cable Assembly
5114683-2
5114683
New
Computed Tomography (CT)
GE Healthcare
GE Healthcare
N/A
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • High quality cable assembly
  • Durable
  • Shielded for protection against EMI/RFI
  • Easy to connect and disconnect

Product Overview

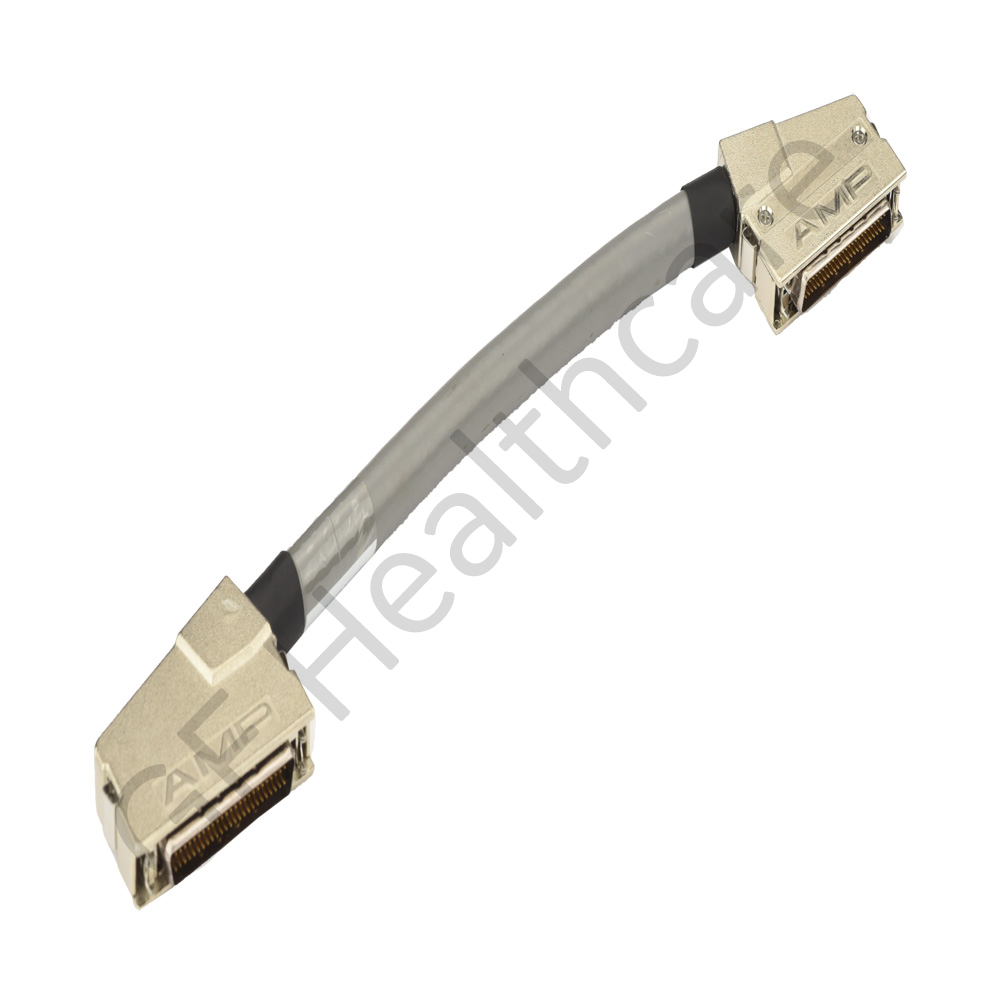

The DAS Buffer PCI Board Cable Assembly consists of two 50 pin D-type male connectors with a backshell on each side connected through 50 conductors (25 Pairs) of size 28 AWG. The backshell in the assembly is a two piece shielded backshell with 75° cable exit and provided with strain relief to improve the durability of the cable. At both ends of the cable, shield is pulled back over the cable insulation and wrapped with a copper foil tape, and covered with 15 mm long heat shrink tube for better insulation. The cable assembly is designed with double shielding which provides excellent EMI shielding and lightning protection. This cable assembly offers outstanding flexibility for easier handling and is labeled for easy identification.

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5114683
