Cable TS IMS Left Positioning Global Table

5330779
5120579
New
PET/CT
GE HealthCare
GE HealthCare
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good Current Carrying Capacity
  • High quality UL1007 rated wires
  • High-Frequency Noise Suppression
  • Pre-lebeled

Product Overview

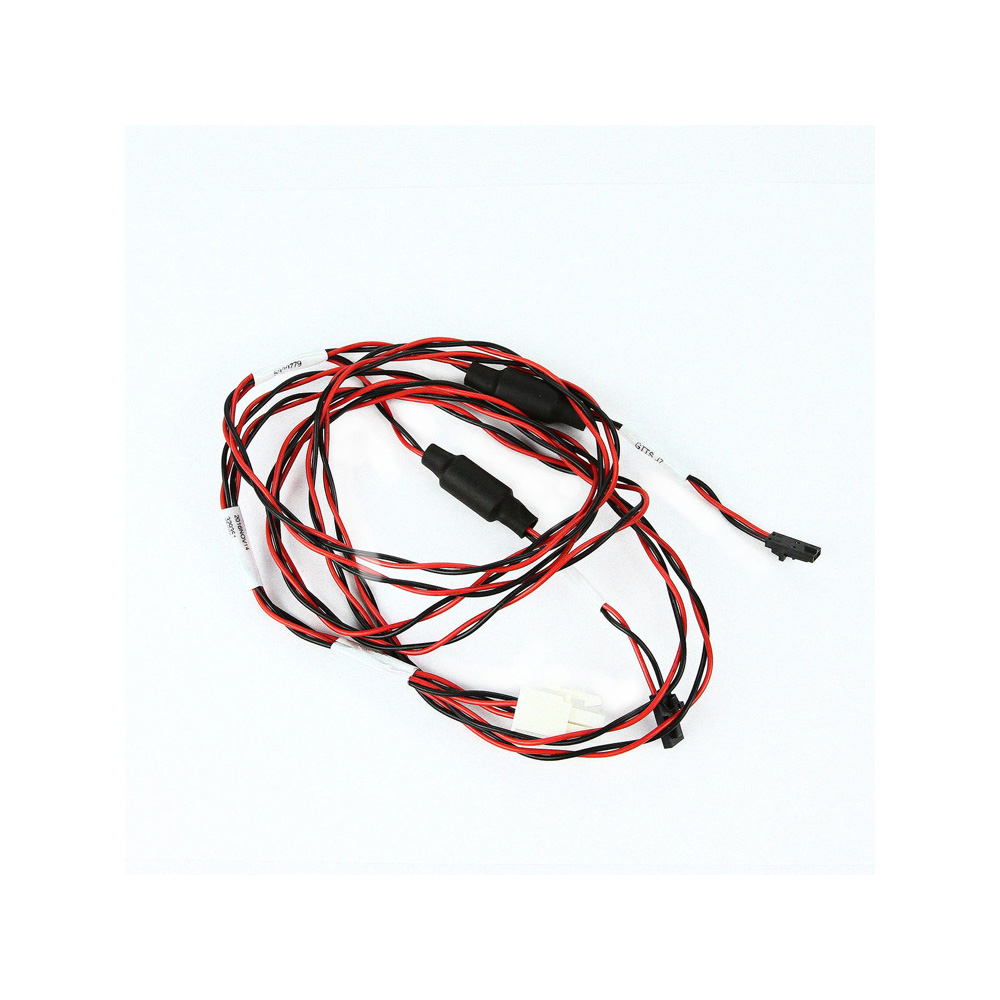

This 1250 mm long twisted pair cable harness comprises of a 3 position-1 row connector and a 2 position-1 row at one end and one 4 position 2 row connector at the other end. The connection between the connectors are established using a high quality UL1007, 22AWG wires, which are color coded in red and black. This cable assembly is used in the left positioning Global Table assembly (GTTS) and comes with pre-labeled information about the part number and cable connection. The 3 position connector (A1) is to be connected to the GTTS J5 and the 2 position connector (A2) to GTTS J4. The wires from these connectors are passing through two 85 ohms ferrite cores which is covered by heat shrink tube and secured by tie-wraps at both ends. The ferrite core suppresses high-frequency noise, creating impedance for problematic circuits. The wires from connector A1 and A2 goes to the 4 position connector (A3) which is to be connected to the GTTS J121. This cable harness is compatible for use in the assemblies of GT1700 N9 and GT2000 N9 table which are used with GE's Optima 660, VCT, Revolution EVO, Lightspeed RT, Discovery 750 HD, Discovery ST, Discovery ST (64 Slice), Discovery ST (128 Slice) PET/CT Systems.

Compatible Products

Optima 660

Optima 660

VCT

VCT

Revolution EVO

Revolution EVO

Lightspeed RT

Lightspeed RT

Discovery 750 HD

Discovery 750 HD

Discovery ST

Discovery ST

Discovery ST (64 Slice)

Discovery ST (64 Slice)

Discovery ST (128 Slice)

Discovery ST (128 Slice)

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5120579
