Locust Board with Drive Improvement 5350006-2
5350006-2
5350006-2-R 5350006 5350006-2-H
New
X-Ray
GE Healthcare
GE Healthcare
N/A
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Low maintenance required
  • Good mechanical resistance
  • High thermal stability
  • High electrical properties

Other Buying Options


Condition: Refurbished

Product Overview

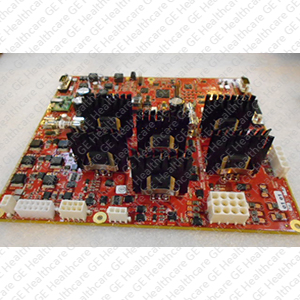

The Locust Board with Drive Improvement is a component in the Mobile Digital RAD X-ray system. It has the following main system functions like motion Control, CAN communications, system bus interface, battery transition interface, power supplies, diagnostics, redundancy and switch/brake/latch control. The locust drive board will provide for green LEDs to indicate the status of the 15V, 5V, 3.3V and 1.8V power supply voltages. It will also provide for red LEDs for power fuse error and board reset. Finally, the board will provide for two green LEDs for the heartbeat of the DSP and CPLD and a yellow LED to indicate the DSP in safe mode. The locust drive board core components are Digital Signal Processing (DSP) and complex programmable logic device (CPLD). The core is responsible to receive drive input signal from Drive handle and other switches to control the system motion and tube positioning. The logic is also responsible to check the collision sensor and other errors on the drive subsystem to prevent unintended motion. All these are arranged and kept in a carrying case with the shipment label. These are more portable and can be transported at ease. It is used in a wide range of medical equipment such as Light Speed Ultra Upgrade, Konica Aero DR Controller (GEDI) many other medical devices.

Compatible Products

Optima XR220

Optima XR220

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5350006-2-R
  • Locust Board with Drive Improvement

5350

5350006
5350006-2-H

Locust Board with Drive Improvement
