Dovetail CMA Upper Mechanical
| 1011-3307-000 | |
| New | |
| Anesthesia Delivery | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | Outright |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Good surface finish
- High corrosion resistance
- Easily anodized
- Good formability
Frequently purchased with this item
Product Overview

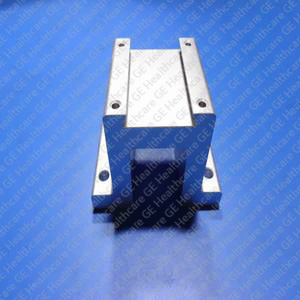

The Dovetail CMA Upper Mechanical is a dove shaped joint installed in anesthesia machines. This dovetail does not need screws and it is used in upper part of the anesthesia machine. Sizes varies according to the requirement. The material of the dovetail is Aluminum 6063-T6. T6 refers to temper type which is heat treated and tempered. The exposed surfaces are coated with Grade 2 minimum and other surfaces are coated with Grade 3 minimum. The wall thickness should be 10 mm and surface finish of MIL-A-8625, Type 2, class 1 clear per supplier. MIL-A-8625 Type 2 is treating the aluminum electrolytic in a sulfuric acid to provide anodic coating on the surface and it can be dyed to various colors. This coating provides strong abrasion and corrosion resistance. This dovetail is used in XR Optima XR220amx, Aisys CS2, MS PDM, ARC Aespire 7900, ARC Aestiva 3000, ARC Aestiva MRI and Aisys systems.
